Characteristics

1. Precision sealing material can improve the wear resistance of sealing points and extend their service life

2. The self-draining structure and sensitive piston induction design can prevent structural damage caused by excessive internal pressure

3. The hoop installation fittings of the valve body can meet the installation requirements of various occasions.

4. 316 stainless steel and 17-4PH material components

5. Pressure reducing flow control (high-pressure input - low-pressure output), with the output pressure adjustable at any time by turning the handle to increase or decrease the pressure.

Parameters

1. Maximum inlet pressure:

10,000psig£¨69MPa£©

20,000psig£¨138MPa£©

2. Outlet pressure range:Low pressure 150 psig ~ high pressure 20,000 psig are optional

3. Ambient temperature: -40¡æ to 70¡æ

4. Outlet connection port: 1/4¡± NPT female thread

5. Inlet and outlet connection ports: 1/4'' NPT female thread or 1/4'' HP female thread

6. Medium: Liquid

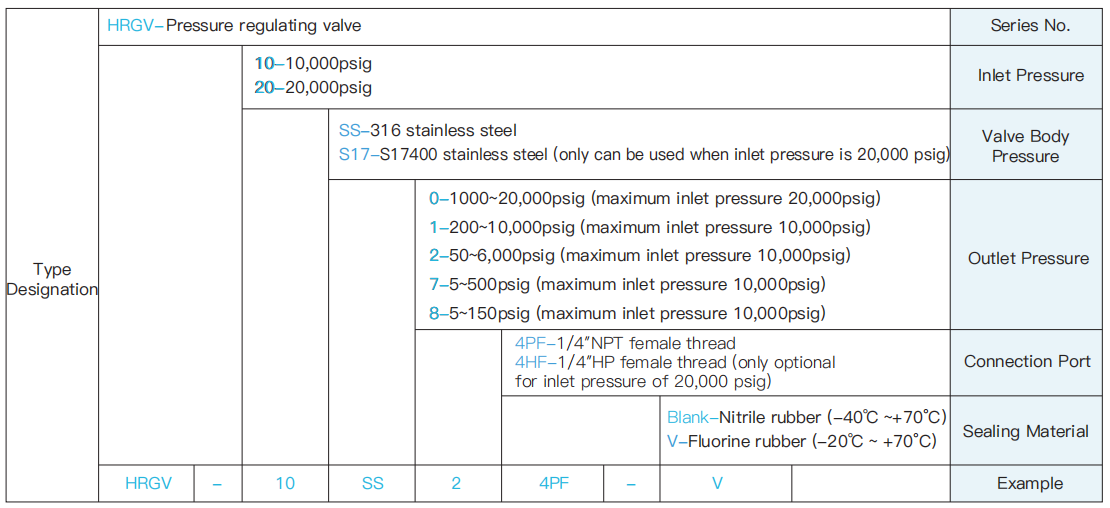

Type Designation
