HANST Pneumatic Pressure Regulating Valve

share
HANST pressure regulating valve in industrial fluid systems, maintaining stable pressure control is crucial for the safe operation of the system. The pressure regulating valve can reduce and stabilize the higher inlet pressure at the lower level as required, and respond to pressure changes to maintain the system pressure stable when the outlet pressure fluctuates. It is typically used to reduce the supply pressure of a pressure source or instrument to a specific lower working pressure. The working pressure supplied from the pressure regulating valve outlet will be kept within the predetermined range required by the control equipment.
Download
Parameters
I know
DetailTypical Applications

Characteristics

1. The self-draining structure and sensitive piston induction design can prevent structural damage caused by excessive internal pressure

2. Applicable to gas (non-corrosive) and liquid (non-corrosive)

3. Soft sealing solution. The polymer material sealing seat can achieve sealing under low pressure

4. Multiple control modes available: manual, pilot air control.


Parameters

1. Maximum inlet pressure: 15000psig (103.4MPa)

2. Outlet pressure range: 1200 to 13500psig

3. Ambient temperature: -20¡æ to 80¡æ (FKM), -40¡æ to 80¡æ (HNBR, EPDM)

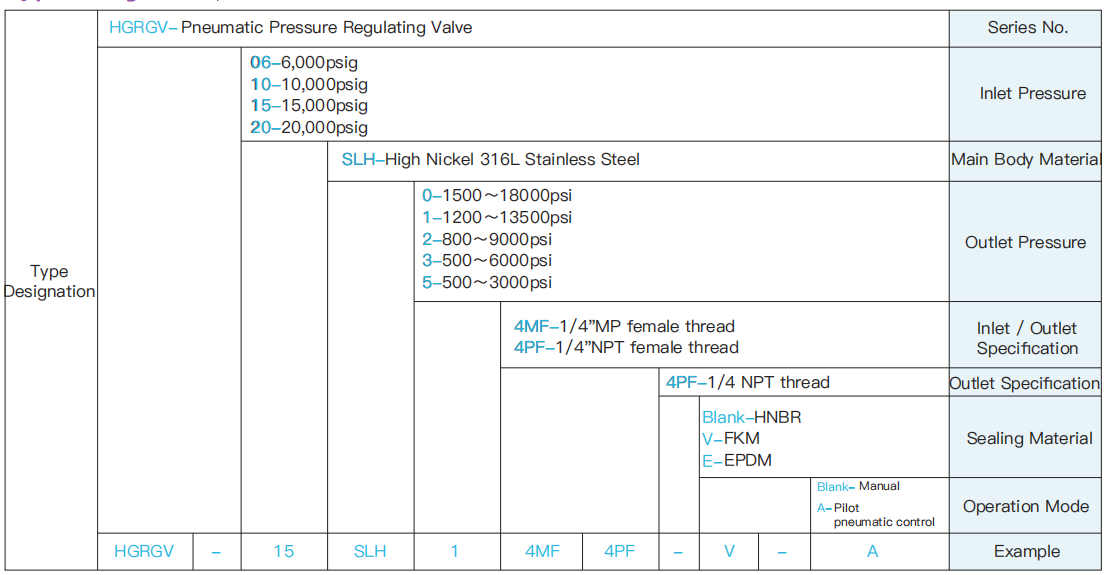

Type Designation
