HANST ESD Valve

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
The HANST ESD valve is a two-position, two-way, manually operated emergency shutdown control valve . The SSV or SDV actuator and the ground-controlled underground safety valve can be quickly closed by pulling up the ESD valve handle. Press the handle of the ESD valve to isolate the air supply port and exhaust port of the valve, and the system can maintain pressure and return to normal working condition.
Download
DetailTypical Applications

Characteristics

1. The whole structure adopts 316 stainless steel

2. It adopts a reliable and durable Buna-N seal.

3. It can be used for both gas and liquid airs.


Parameters

1. Maximum working pressure: 200psig

2. Working temperature: -40¡æ to 180¡æ

3. Working port: 1/4"NPT female thread

4. Cv value: 2.6

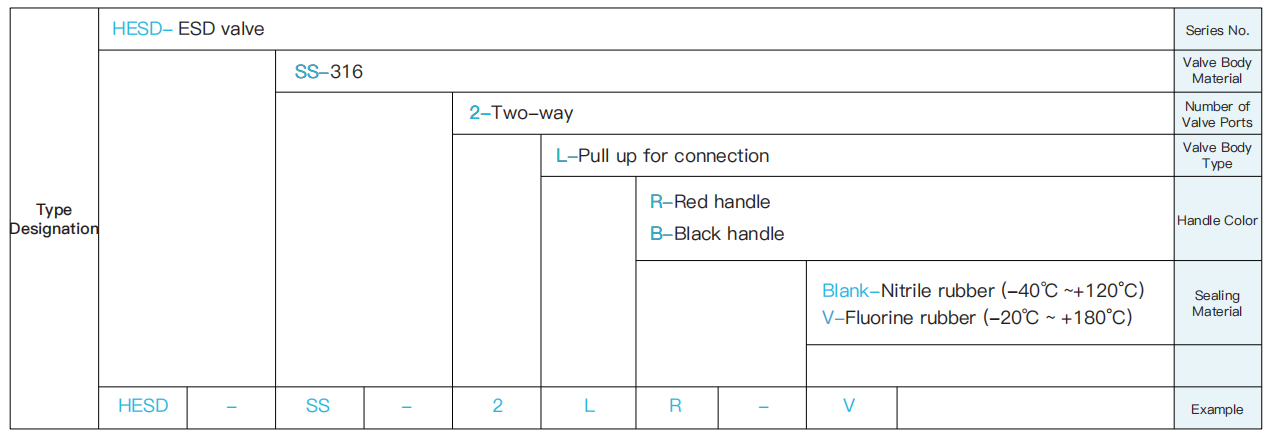

Type Designation
