HANST Pilot Valve
share
The main function of the HANST pilot valve and the HP and LP pilot valve group is to send a signal when the pressure in the system exceeds the set safe pressure range. After receiving the signal, the system can shut down and stop the pump. It is commonly used in the oil and gas industry. The working principle is to balance the pressure acting on the piston opposite to the adjustable spring force.
Download
DetailTypical Applications
Characteristics
1. The body material is 316 stainless steel.
2. Sensitive response and low friction of sliding parts, ensuring that the system pressure is shut down within 10% of the system pressure higher or lower than the set pressure of the system.
3. Soft material sealing, good sealing effect.
4. The maximum working pressure of the system is up to 70Mpa.
5. It can be used normally under temperature conditions of -40¡æ
6. High repeatability, ensuring that the system shutdown pressure deviation is less than 1% each time
Parameters
1. Pilot port: 1/4" NPT female thread

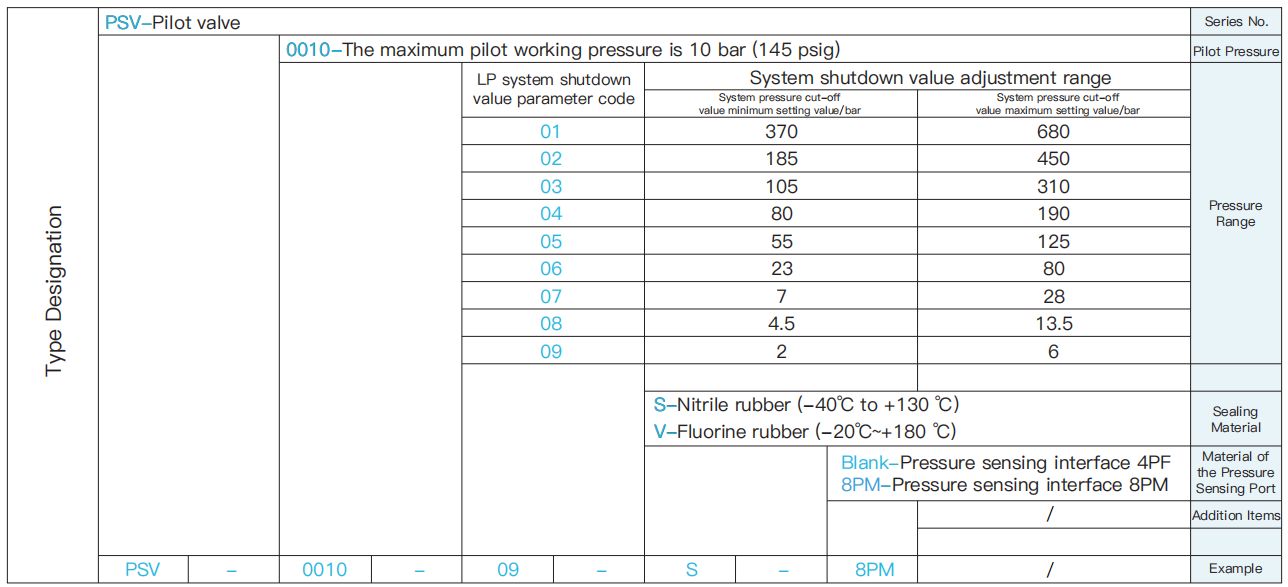

Type Designation
