Characteristics

1. The body material is 316 stainless steel.

2. Compact structure and small size

3. It can be used normally under temperature conditions of -40¡æ

4. Especially suitable for installation in the drawer of the wellhead control panel

5. The forced opening function with handle can be provided. You can contact us to obtain dimensional drawings.

Parameters

1. Port: 1/4" NPT female thread

2. Pilot pressure: 80 to 100 psig

3. Working temperature: -40¡æ to +180¡æ

4. Proportional unloading valve pressure setting range:

2,500 psig ~ 3,500 psig

3,500 psig ~ 4,500 psig

4,500 psig ~ 6,000 psig

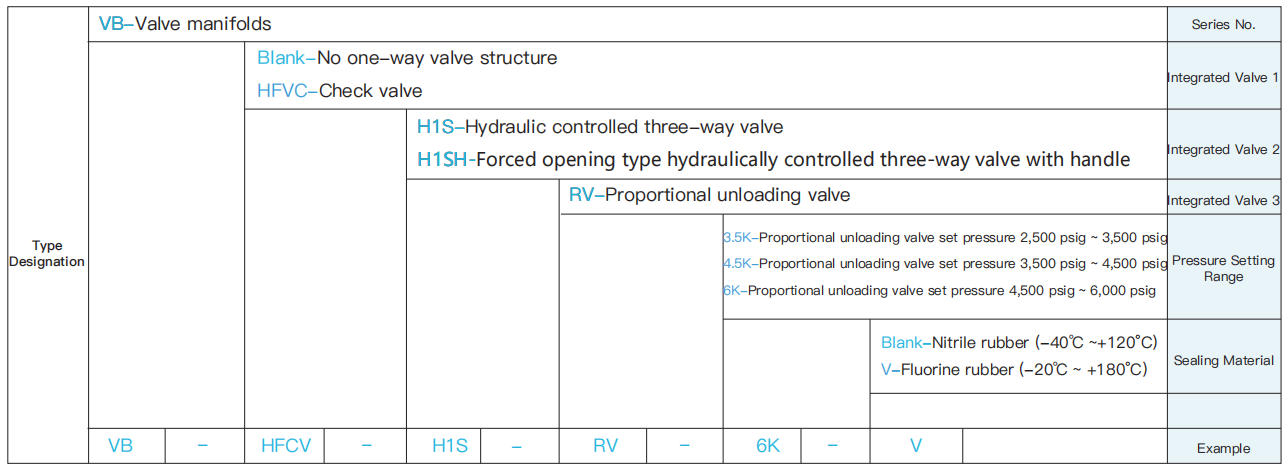

Type Designation
