HANST Interface Valve

share
The HANST Interface valve is a two-position, three-position normally closed valve that uses a low-pressure pilot to control the opening of the high-pressure circuit and a spring-return flow control valve. Its function is to use a relatively low pilot pressure to control the high-pressure hydraulic output. When the pilot pressure is released, the inlet is closed and the pressure in the control circuit is relieved. The hydraulic three-way valve is commonly used to control the opening or closing operation of subsurface safety valves (SCSSVs) or surface safety valves (SSVs).
Download
Parameters
I know
DetailTypical Applications

Characteristics

1. The body material is 316 stainless steel.

2. The product is small in size and can effectively reduce the installation area of the valve body.

3. Soft material sealing, good sealing effect.

4. The maximum working pressure is up to 30,000 psig

5. It can be used normally under temperature conditions of -40¡æ

6. The forced opening function with handle can be provided. You can contact us to obtain dimensional drawings.


Parameters

1. Pilot port: 1/4" NPT female thread

2. Port status: normally closed

3. Applicable temperature: -40¡æ to 180¡æ

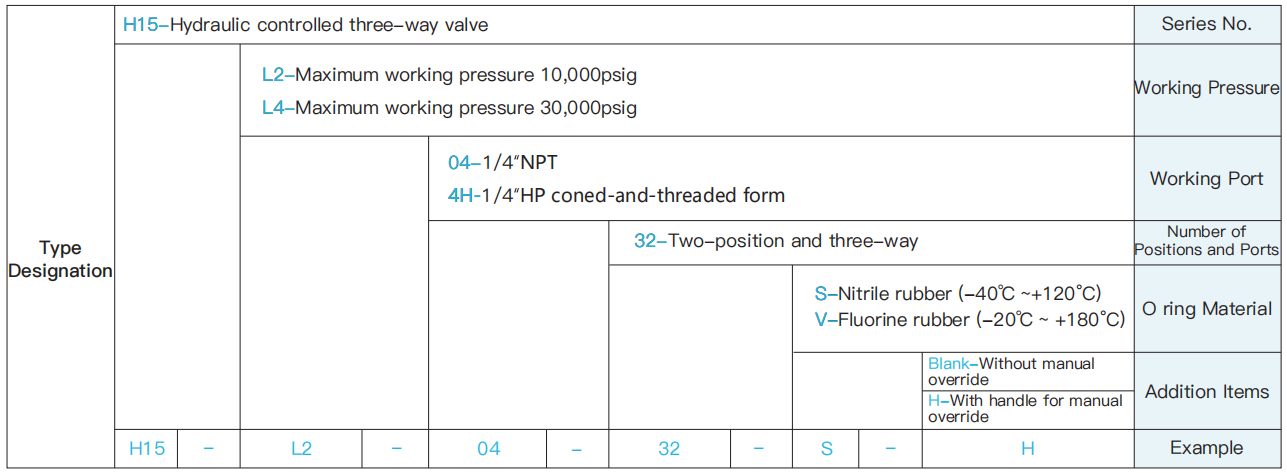

Type Designation
