Characteristics

1. The machine has an attractive appearance and a moderate size.

2. It is fully automated. After installing the fitting, simply open the taper switch and wait for the taper to complete (indicated by the light turning on), then remove the pipe. For thread machining, move the thread machining lever to engage the tool, wait for the thread to complete, and then remove the pipe.

3. The machine is equipped with wheels with brakes at the bottom for easy movement and on-site operation.

4. It has a tool storage drawer with partitions for easy access to tools

5. The power supply is single-phase 220V or three-phase 380V, adaptable to different environments.

6. It is equipped with a transparent oil splash guard to prevent oil and debris splashing. The guard can be lifted for easy access to the chuck and tool head, facilitating operation, maintenance, and repair.

7. Thread and taper machining are done through a single lever and knob switch, making operation easy and effortless

8. The thread machining uses a spring-loaded tool head, eliminating the need for reverse rotation when retracting the tool, which effectively prevents

thread damage.

9. The blade is easy to install and has a long service life.

10. It comes with a cutting oil circulation system, which minimizes oil consumption during operation. Once filled, the cutting oil can last for a long

time.

11. Customized taper machining blades are available for machining the end faces of the taper.

12. The operation end is one meter above the ground, meeting ergonomic standards.

13. Suitable for taper and thread machining of MP and HP Tubes in sizes such as 1/4", 3/8", 9/16", 3/4", and 1".

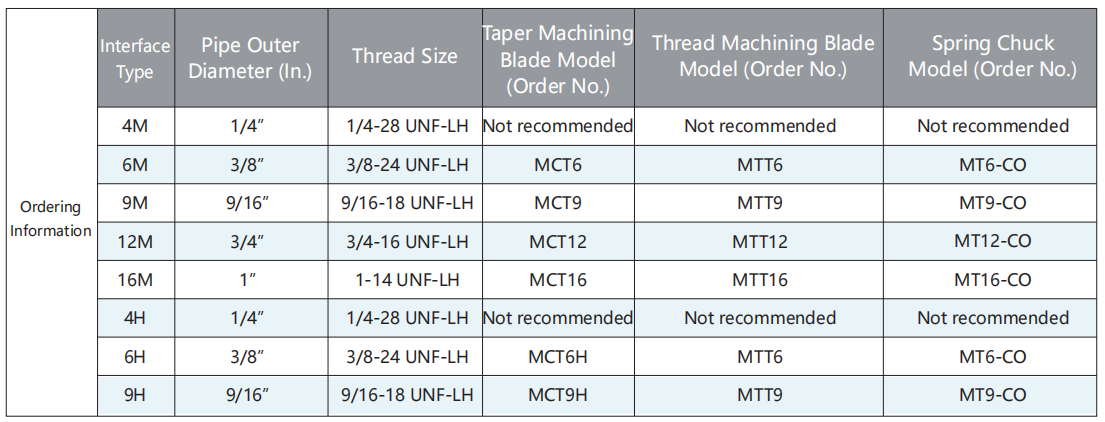

Type Designation
