HANST Pilot Valve Manifold
share
The HAST pilot valve manifold integrates a ball valve, a pressure reducing valve, and a proportional unloading valve (with a pressure setting range of 50 psig to 300 psig). After integrated, it has small volume and compact structure, effectively reducing the installation space and time.
Download
DetailTypical Applications
Characteristics
1. The body material is 316 stainless steel.
2. Compact structure and small size
3. It can be used normally under temperature conditions of -40¡æ
4. The integrated structure effectively reduces installation space and time, as well as simplifies the layout of steel pipes and wiring.
Parameters
1. Working medium inlet (IN): 1/4" NPT female thread
2. Working medium outlet (OUT): 1/4" NPT female thread
3. Working medium outlet (T): 1/4" NPT female thread
4. Working temperature: -40¡æ to +70¡æ
5. Maximum inlet pressure: 6,000psig
6. Proportional unloading valve pressure setting range: 50psig to 300psig

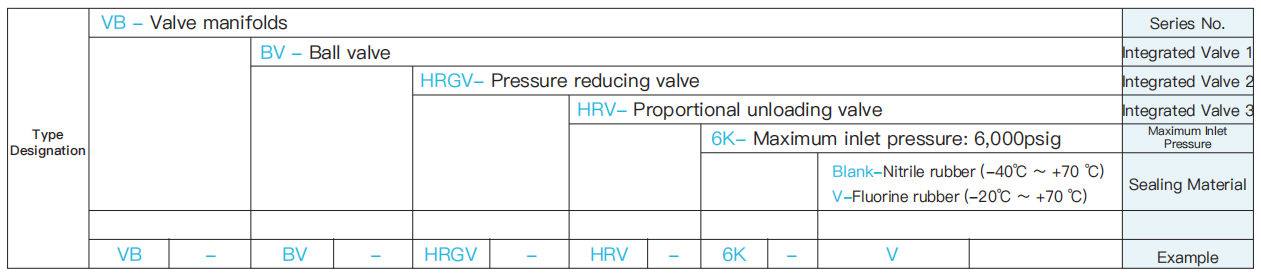

Type Designation
