HANST Pilot Button Valve

share
HANST pilot valve is often used to activate the pilot circuit of wellhead control system to pressurize the fusible plug. It is a two-position, three-way and normally closed valve and used as a normally open valve when the T port serves as the working medium inlet. The valve spool is controlled by a manual button to cut off or open the inlet pressure, and reset immediately after the button is released.
Download
Parameters
I know
DetailTypical Applications

Characteristics

1. The whole structure adopts 316 stainless steel

2. It adopts a reliable and durable Buna-N seal.

3. It can be used for both gas and liquid airs.

4. The button material is 316 stainless steel, which is strong and durable.


Parameters

1. Maximum working pressure: 200psig

2. Working temperature: -40¡æ to 180¡æ

3. Working port: 1/4"NPT female thread

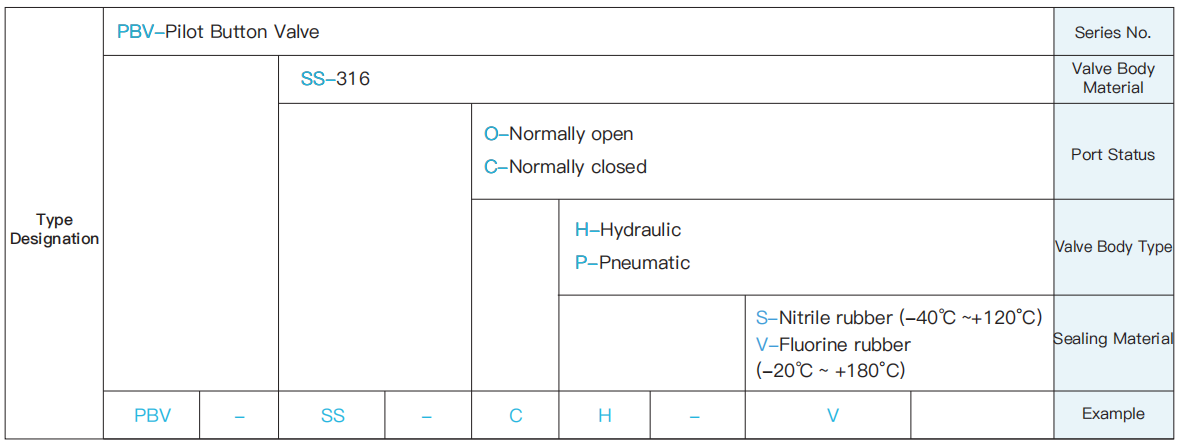

Type Designation
