HANST High Flow Filter

share
Under high-pressure, high-flow, or highly contaminated operating conditions, the ?HANST HANST High Flow Filter employs ?three-stage gradient filtration + self-cleaning technology? to effectively address issues such as ?clogging susceptibility, excessive pressure loss, and frequent maintenance¡ªcommon causes of ?system efficiency degradation? or ?unplanned shutdowns. Designed for large-flow fluid systems in petroleum, chemical, and related industries, it delivers ?purification protection? and is ?available in standard/compact configurations.
Download
Parameters
I know
DetailTypical Applications

Characteristics

1. The maximum working pressure is up to 15,000 psig (1,034 bar)

2. Working temperature: -40¡ãC to 70¡ãC

3. Filter head and filter barrel material: S31803 stainless steel

4. Standard O-ring material: Nitrile rubber

5. Filtration accuracy: 3¦Ìm

6. Two lengths of filter elements available.

7. It's equipped with electric, visual pressure differential transmitter, and bypass valve

8. It should be installed in a forward vertical position

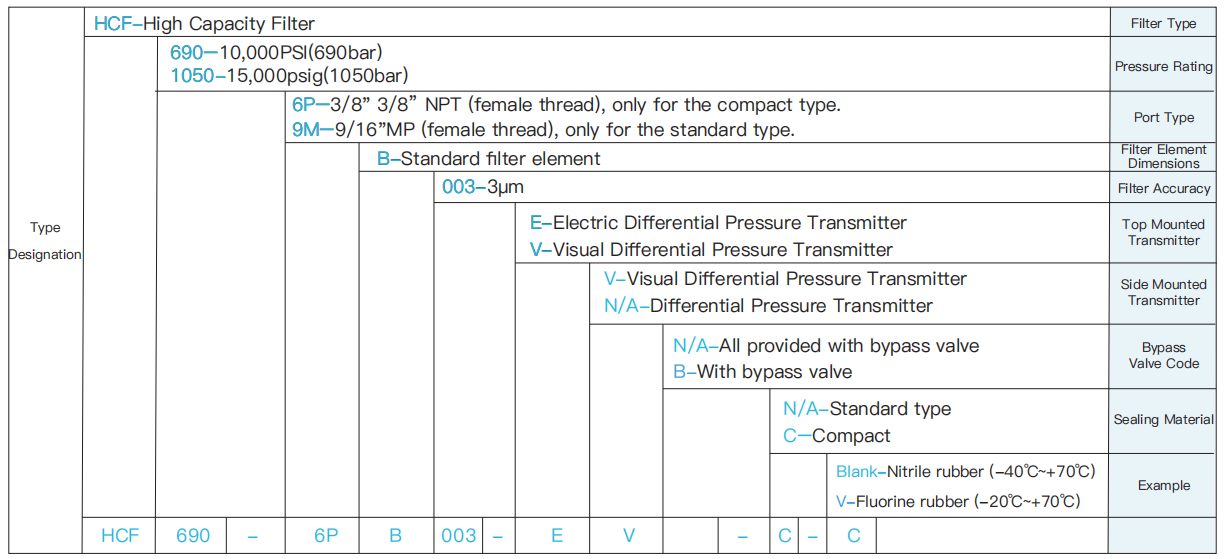

Type Designation
